2006-2010 CHEVROLET / GMC INTERCOOLER CHARGE PIPE BUNDLE INK BLACK

Looking to upgrade your intercooler piping? HSP has a bundle kit for you. Featuring 3-inch mandrel bent hot side and cold side tubes with our easy to install two-piece Y-bridge with race-proven 5 layer silicone boots so you can be ensured a great fit that won't let you down. The factory hot side intercooler tube is only 2.25 inches in diameter and has a 90-degree boot at the intercooler that is prone to failure. With this routing there is a possibility of the hot side intercooler tube rubbing on the power steering line, causing the line to rub a hole in the tube resulting in a boost leak.

HSP's solution to this problem is to run the hot side tube directly into the intercooler resulting in lower temperatures, better airflow, and added clearance in tight places. Ours bolted together two-piece Y-bridge will make installation a breeze and ensure a leak-free seal that won't leave you on the side of the road.

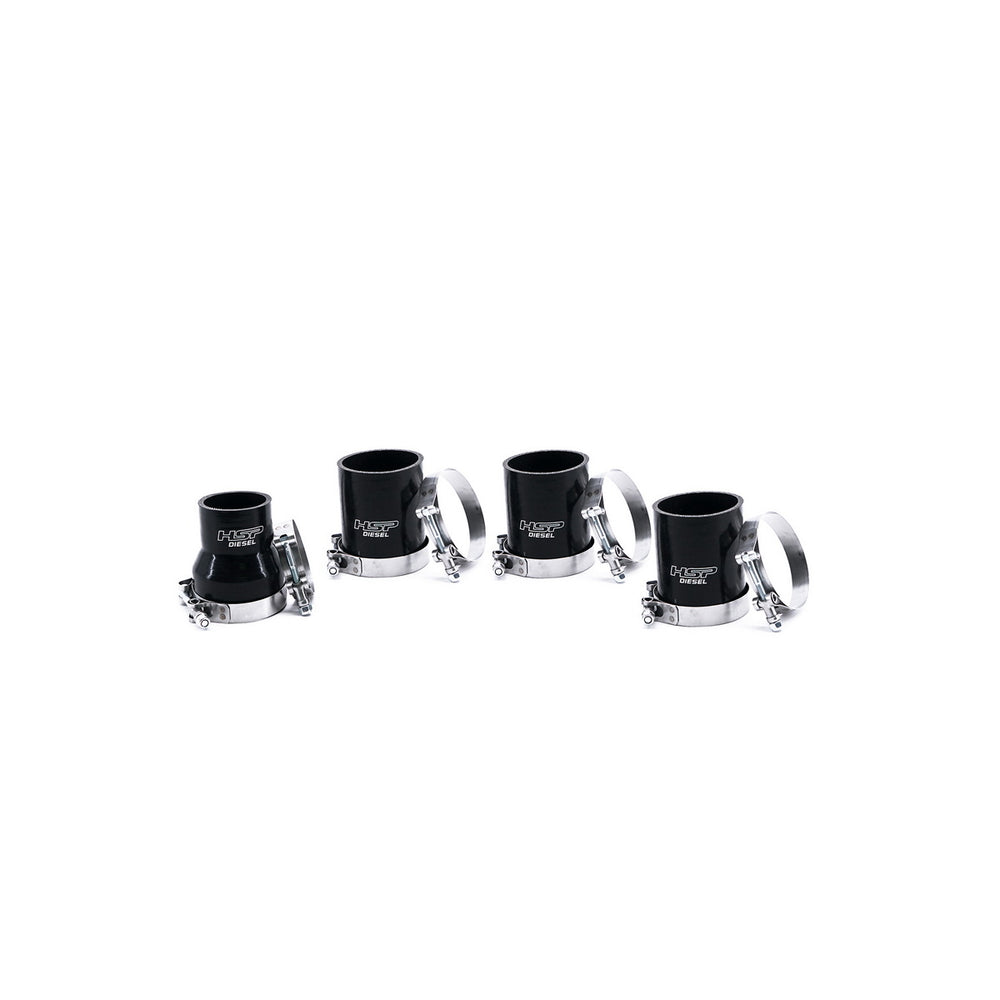

Included Components:

• 3x 3 inch x 4 inch Straight Boots
• 7x 3 inch T-bolt Clamp
• 1x 2.25 inch - 3 inch Reducer Boot
• 1x 2.25 inch T-Bolt Clamp
• 2' of 5/8 inch Heater Hose
• 1x 1/8 inch NPT Brass Plug
• 1x Bridge neck O-Ring
• 2x 5/8 inch Worm Gear Clamps
• 2x Bridge Neck Stud
• 2x Bridge Neck 12-Point Nut

Compatible with:

LBZ: 06-07 VIN Code 2 or D
LMM: 07.5-10 VIN Code 6
