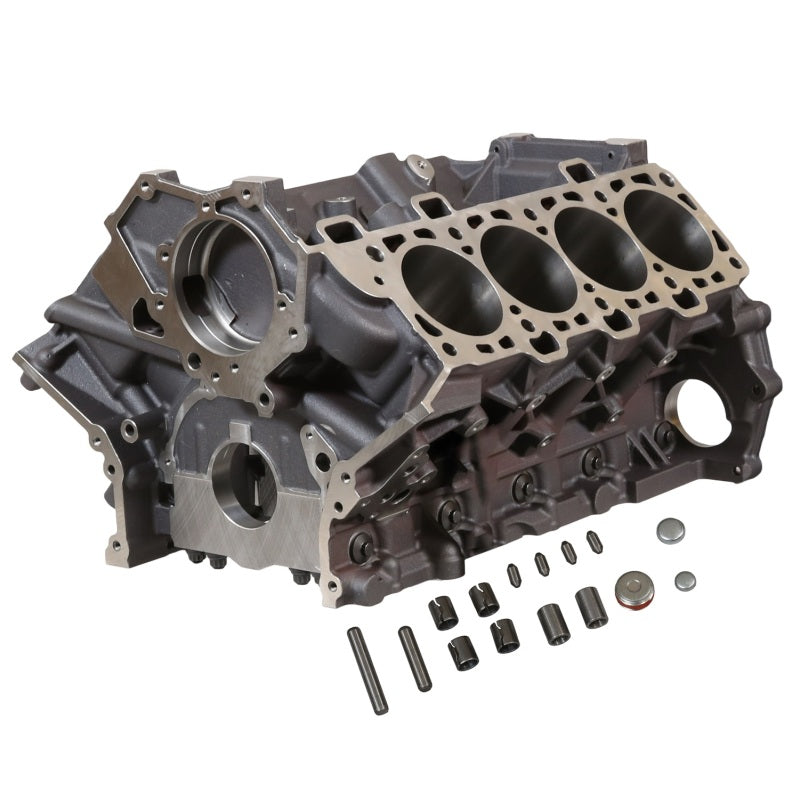

FORD RACING COYOTE CAST IRON RACE BLOCK

Ford Racing Coyote Cast Iron Race Block

• Revised Deck Design For Added Strength Around The Water Jackets
• Accepts Gen 1; Gen 2 And Gen 3 Gt350 5.2L Cylinder Heads
• Accepts Gen 1 And Gen 2 Coyote 5.0L Cylinder Heads
• Billet Steel 6 Bolt Main Caps w/Arp Hardware
• Gen 2 And Gen 3 Gt350 5.2L Cylinder Heads
• Standard Coyote 100 mm Bore Spacing
• Lengthened Bores For Added Strength
• Finished Bore 92.2 mm [3.630 in.]
• Finished Bore 92.2 mm (3.630 in.)
• Maximum Stroke 99 mm (3.897 in.)
• Maximum Bore 95.0 mm (3.740 in.)
• Maximum Bore 95.0 mm [3.740 in.]
• Maximum Stroke 99 mm [3.897 in.]
• Deck Height 227 mm (8.937 in.)
• Deck Height 227 mm [8.937 in.]
• Utilizes 12 mm Head Bolts
• Maximum Displacement 5.6L
• Accepts Gen 1
