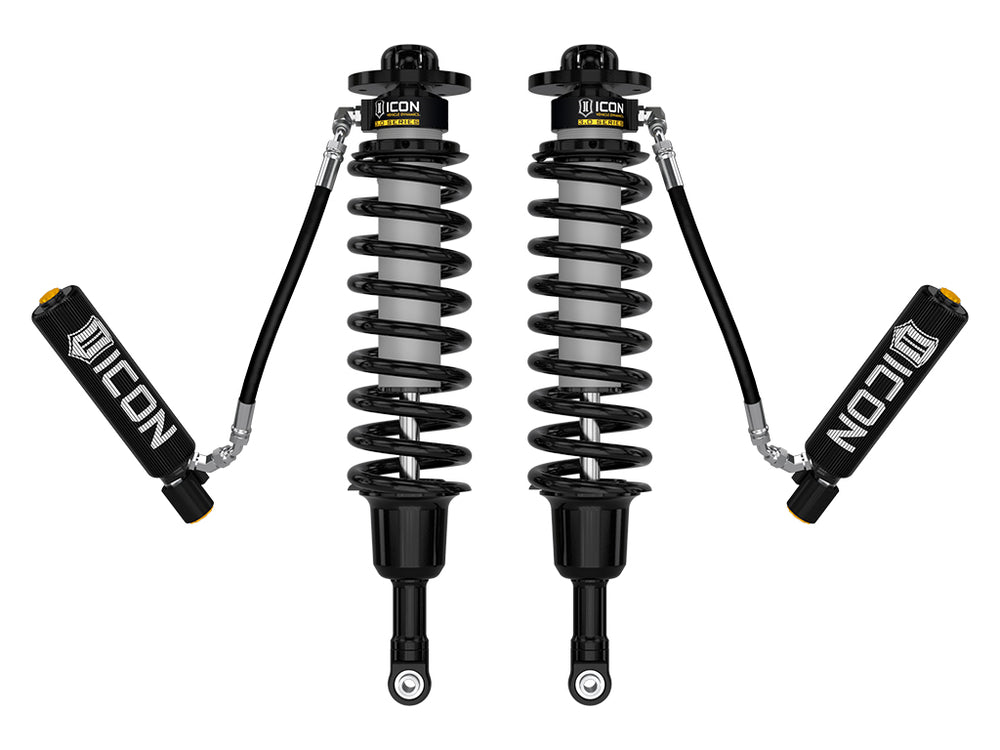

ICON 2021-2025 FORD F-150 RAPTOR, 1-3" LIFT, FRONT, V.S. 3.0 SERIES COILOVER KIT, REMOTE RESERVOIR W/ CDEV

The front-end geometry of the Gen 3 F-150 Raptor was found to be fairly similar to the previous model truck, however there are a few key differences that required a redesign of the coilover to be compatible with the newer generation chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging and provide 1-3” of front lift height adjustment. The vehicle-specific valving featured in these shocks and the ICON-engineered coil spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON’s multi-stage hydraulic “Bump Zone” adds to the performance capability by providing an exponential increase in damping ability during the last 40% of compression travel for superior bottom-out resistance. In the ride zone, these 3.0 Series coilovers see a 50% increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. 10” finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area compared to standard reservoir cylinders for enhanced cooling and consistent damping under aggressive off-road use.

Recommended Aftermarket Tires: 35" x 12.50" (37" or larger tires require coilover bump stop spacers along with trimming and modifications)
