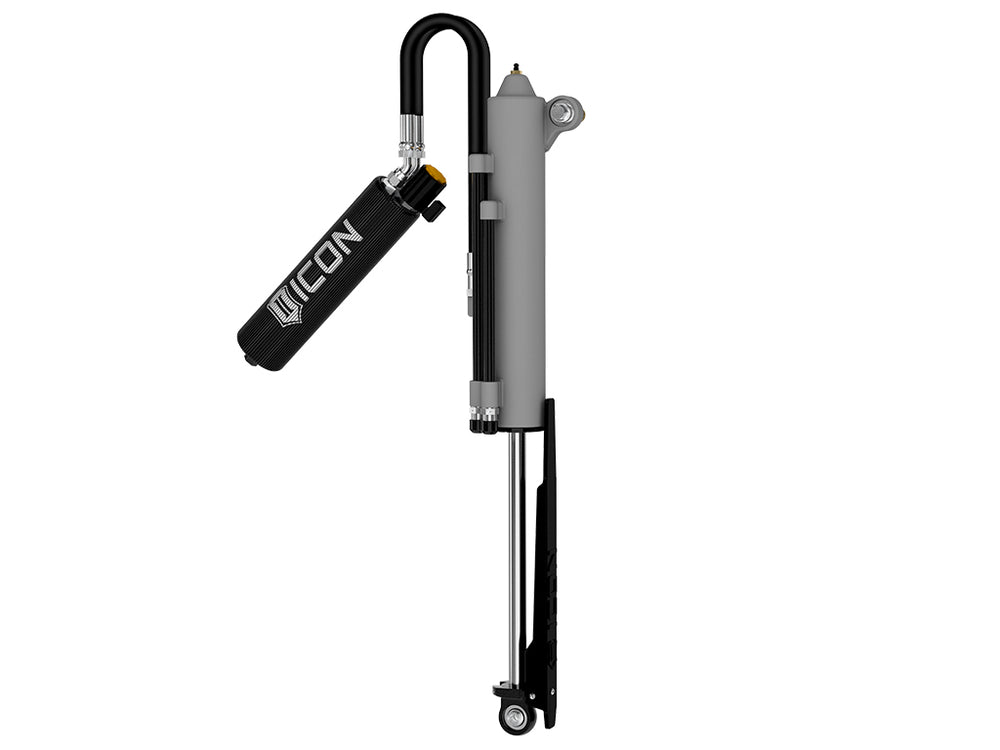

ICON 2021-2025 FORD F-150 RAPTOR, PASSENGER REAR, V.S. 3.0 SERIES ZETA BYPASS RXT SHOCK ABSORBER, REMOTE RESERVOIR W/ CDEV

ICON RXT Rear 3.0 Remote Reservoir Bypass Shocks are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature damped valve stops for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the included “Easy-to-Adjust” knobs and the replaceable bypass tubes. The “Easy to Adjust” High Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds from plush off-road performance to firm on road manners for extra control while driving the mountains or towing a trailer. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.

APPLICATION NOTE #226: Not compatible with OE rear coils. Shock length requires ICON rear coil springs part number 95230 or 95231.
