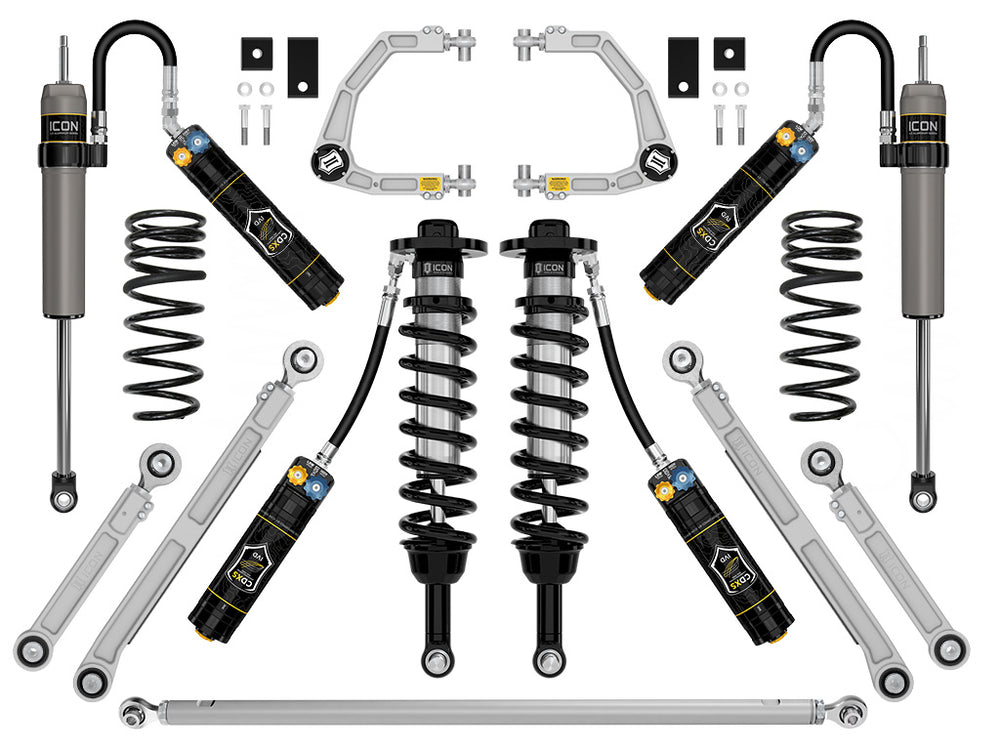

ICON 2022-2025 TOYOTA TUNDRA, 1.25-3.5" LIFT, STAGE 11 (TRD), 2.5 SUSPENSION SYSTEM, BILLET, CDXS

This Stage 11 system features the 2022-2025 Toyota Tundra VS 2.5 Series remote reservoir front coilovers equipped with CDXS. These adjustable coilovers allow up to 1.25-3.5” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers also feature ICON's exclusive Compression Damping Dual Speed (CDXS) valves for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

TECH NOTE: Included rear springs net .75" of rear lift on a Tundra equipped with a TRD suspension package and TRD Pro. A Tundra without a TRD suspension package will net 1.25" of rear lift. If lower rear ride heights are desired, consider ICON part number K53201.
