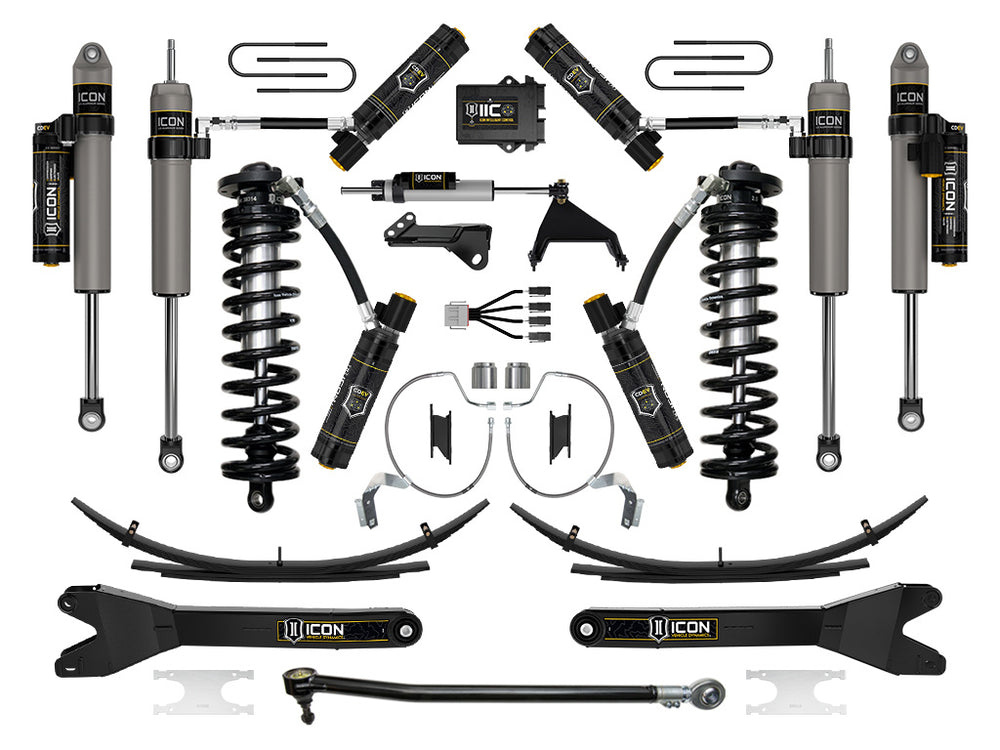

ICON 2023-2025 FORD F-250/F-350 SUPER DUTY 4WD, 4-5.5" LIFT, STAGE 9 COILOVER CONVERSION SYSTEM W/ RADIUS ARMS & EXPANSION PACKS

ICON's 4-5.5” Lift Stage 9 Coilover Conversion System features 2.5 Series CDEV remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To take advantage of the coilover's option to mount secondary shocks in the stock location, 2.5 Aluminum Series CDCV remote reservoir secondary front shocks are included, effectively doubling shock damping ability on the front of the vehicle. Fabricated radius arms offer significantly more strength over the OE units and feature built in caster cams for on-vehicle caster adjustment, maintenance free bushings, and improved tire clearance at full steering lock, all while eliminating the need for drop brackets and thus raising ground clearance under the chassis. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.

APPLICATION NOTE #209: Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
