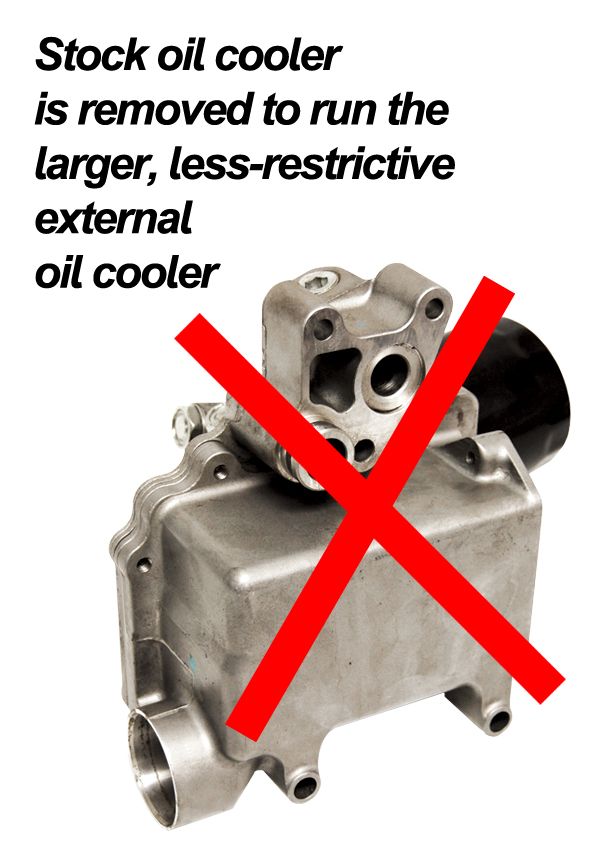

INTERNAL OIL COOLER DELETE KIT GM DURAMAX 01-10

Designed for high performance Duramax engines that require remote oil cooler and filtration solutions. Popular for hot rod, marine and race applications that require larger less restrictive cooler/filter systems. Compact design adds additional clearance for tight engine frames.
Features:

• Internal Oil Cooler Delete Kit
• Machined from billet aluminum with hard-anodized black finish
• Uses existing factory oil-cooler mounting bolts
• -12AN ORB port, -16AN (1 inch) oil inlet/outlets
• 1/8 inch NPT oil temp sender port (measures oil temp entering block)
• Includes Engine Coolant Bypass Adapter
• Sold As A Kit

Applications:

• 2001-2010 GM 6.6L Duramax engines

Note:

• Use with Coolant Tube Kit (114001050)and Remote Filter Mount (114002000)
• Recommended to use with -16AN (1 inch) hose for maximum flow
